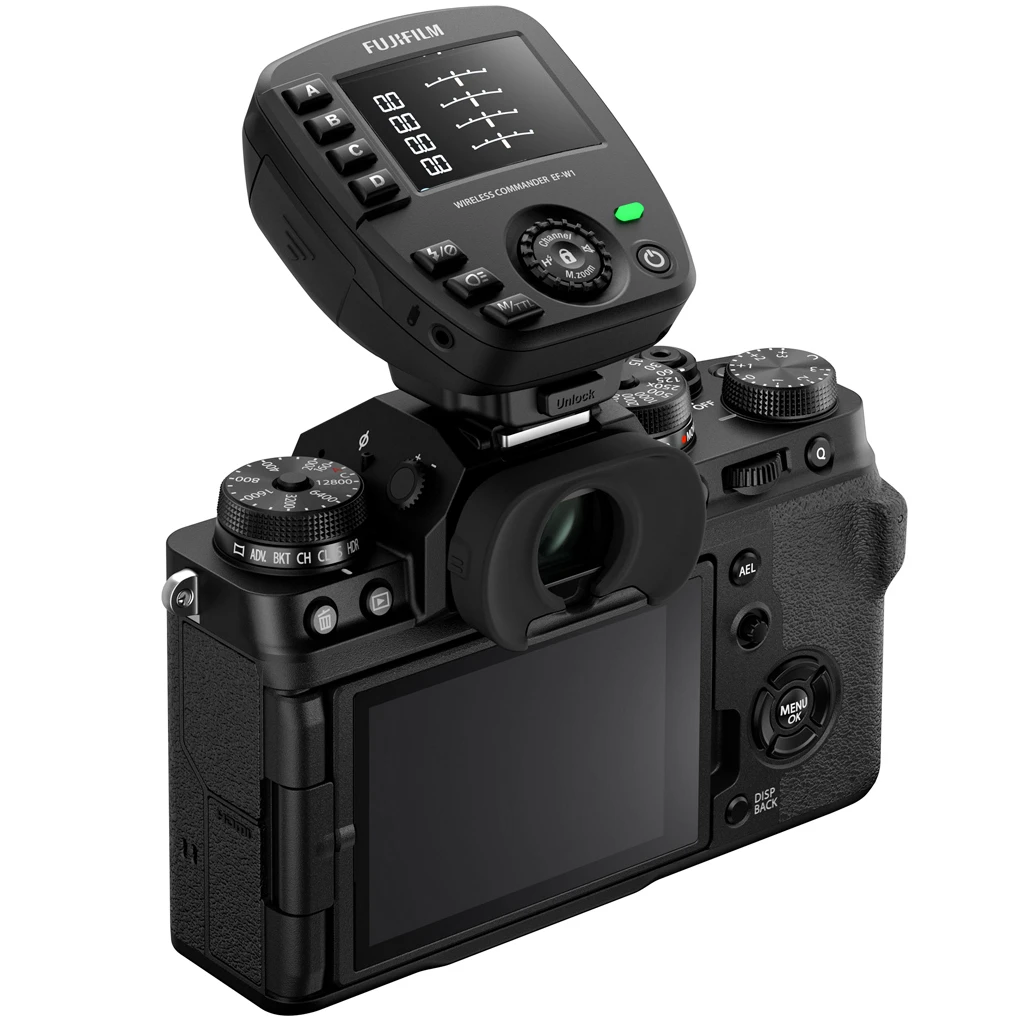

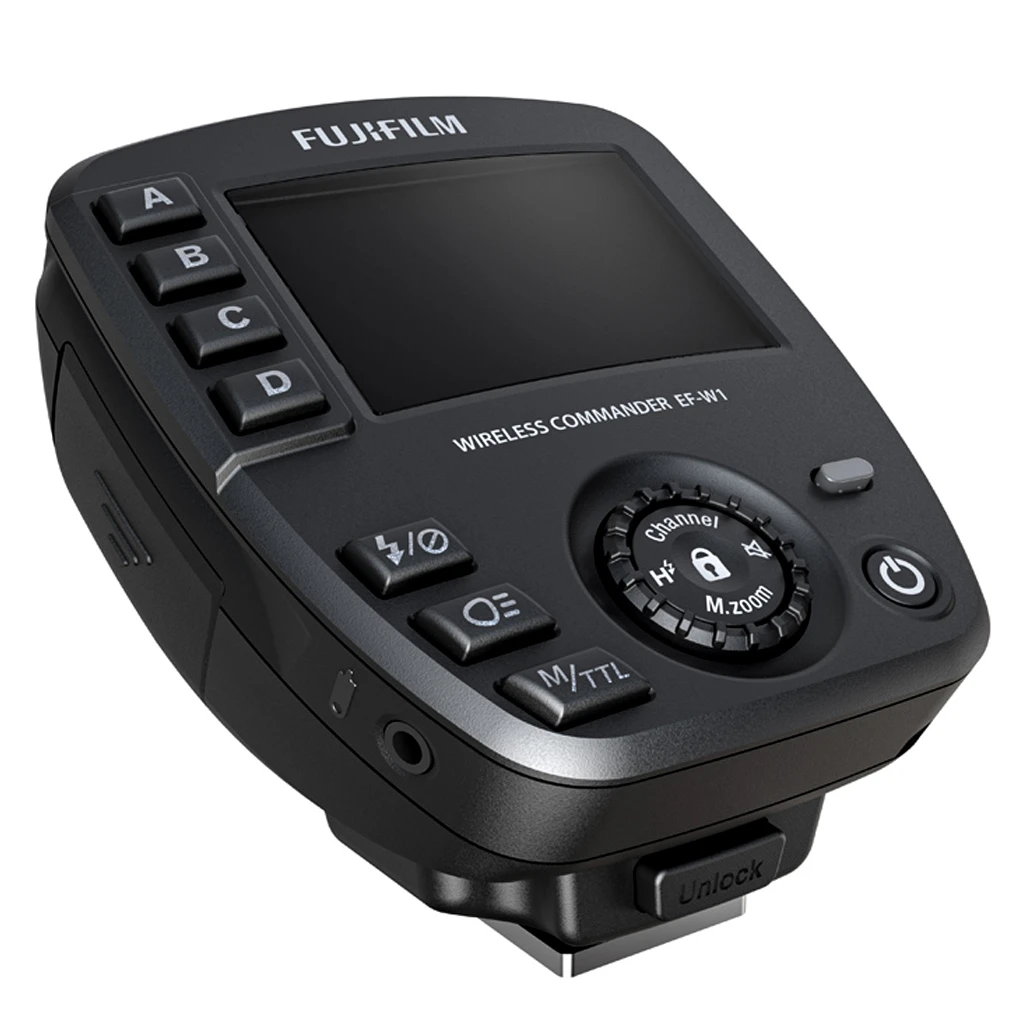

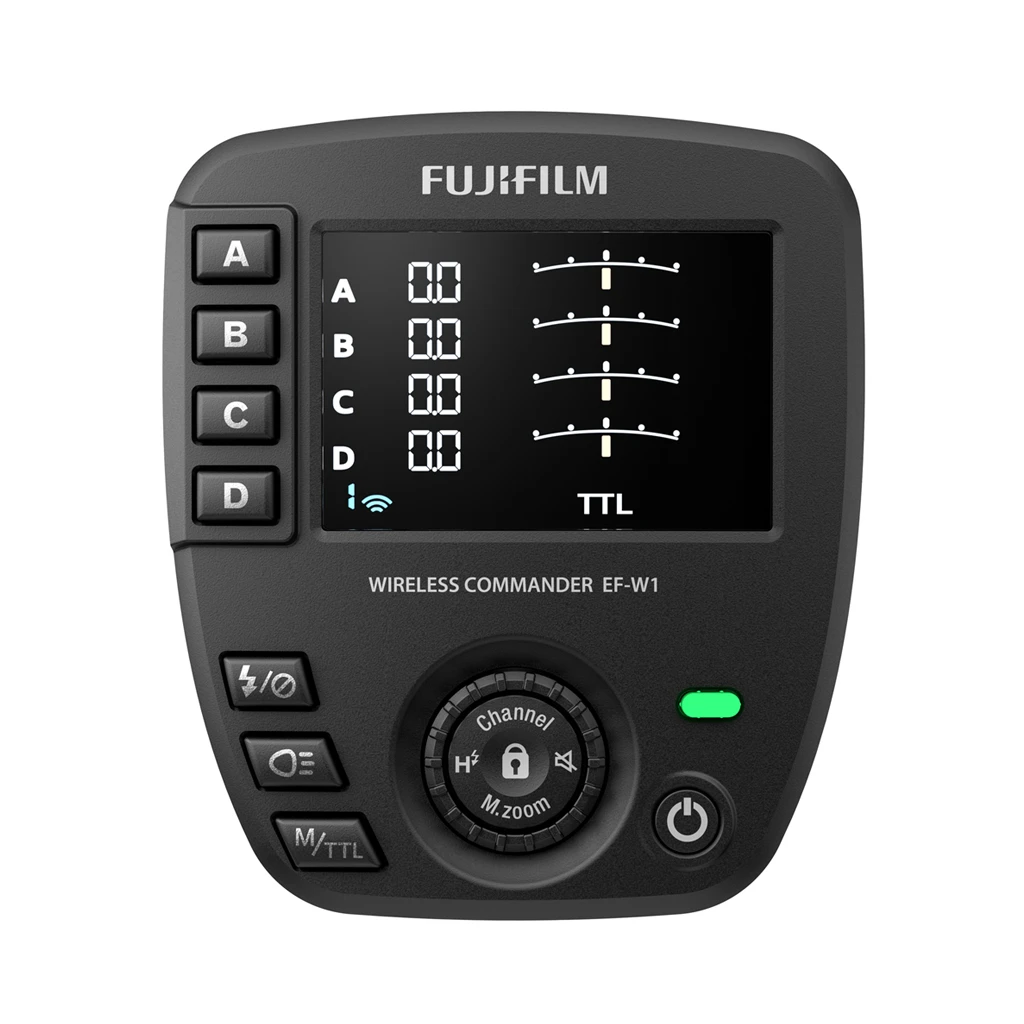

Fujifilm EF-W1 is a commander unit that uses radio-controlled wireless communications to remotely trigger EF-60’s functions including the TTL mode, Manual mode and FP High-Speed Sync mode.
This commander unit uses radio-controlled wireless communications to remotely trigger EF-60’s diverse functions including the TTL mode, Manual mode and FP High-Speed Sync mode. It can simultaneously control multiple remote flash units, which can be divided into four groups to accept different settings.
The commander and remote flash units communicate with radio control. This means remote flashes can be placed in positions far away or out of direct line-of-sight from the commander, and used even in bright ambient light, giving greater freedom than the conventional optical communications system in configuring a shooting set-up, thereby broadening possibilities in photographic expressions.
The EF-W1 uses NAS (Nissin Air System) for radio-controlled wireless communications. This means the commander makes the X and GFX Series of camera systems compatible not only with the EF-60 but also with a variety of NAS-based speedlights offered by Nissin Japan Ltd.
Fine-control of the “Light”
The EF-W1 allows you to control output in 1/3EV increments in both output compensation in the TTL mode and power control in the Manual mode. In the Manual mode, the output level can be reduced to as low as 1/256. This ability to adjust the flash output in greater detail facilitates intricate expressions in flash photography.
| WIRELESS COMMUNICATION UNIT | |
| COMMUNICATION METHOD | NAS (Nissin Air System) |
| FREQUENCY RANGE USED | 2409 – 2476 MHz |
| WIRELESS MAXIMUM OUTPUT | 8 dBm (EIRP) |
| COMMUNICATION CHANNEL | 8 channels |
| REMOTE GROUP | A, B, C, D, A°, B°, C°, D° |
| MAXIMUM NUMBER OF FLASHES USED SIMULTANEOUSLY | 30 |
FUNCTIONS |
|
| ACTION MODE | Radio Wireless Commander (TTL, Manuale, OFF) |
| TTL FLASH EXPOSURE COMPENSATION CONTROL | ±2EV, 1/3EV steps |
| MANUAL FLASH CONTROL | 1/1 – 1/256, 1/3EV steps |
| FP (HIGH SPEED SYNC) EMISSION CONTROL | Compatible (when using a compatible camera) |
| THE COVERAGE (ZOOM) | 24 – 200mm (35mm format conversion), auto zoom |
| RECYCLING TIME | Max. approx. 10 times/second |
| OTHER FUNCTIONS | Firemware update by microSD card, open mode, modeling light control that allows to control one flash from multiple wireless commanders. |
POWER SUPPLY AND OTHERS |
|
| NO. OF FLASHES | Approx. 3,000 times (when using alkaline batteries) |
| POWER SUPPLY | 2 x AAA batteries (Ni-MH batteries, alkaline batteries) |
| DIMENSIONS (HxWxD) | Approx. 61mm x 62mm x 68mm |
| USING TEMPERATURE RANGE | From -1O°C to +40°C |
| WEIGHT | ca. 73 gr |
Source: Fujifilm Official
